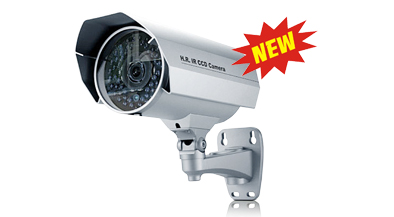

This outdoor IR camera, AVK563, is a controllable camera, allowing users to manuallyadjust & set camera parameters from a DVR without additionally connecting RS485 control wires. It can be used with our DCCS DVR series for directly control, or with otherbrand’s DVR controlled via our optional DCCS control box, AVK-T1.
- Supports DVR / Camera Communication System (DCCS) Technology
>> There’s no need to additionally connect RS485 control wires for camera control because the control signals can be transferred by coaxial cables directly.
>> Camera installation is highly simplified to lower labor cost and working hours. - Smart Zoom
Smart Zoom
>> Zooms in on the object which triggers motion or alarm recording automatically, excellent for evidence collecting. - True Day & Night surveillance with IR shifter & large aperture lens (F1.4) - The best cost / performance outdoor solution with IP67 - IR effective distance up to 40 meters with 56 IR LEDs - Smart Light Control to avoid overexposure - Excellent outdoor ID design with cable management
True Day & Night surveillance with IR shifter & large aperture lens (F1.4)The best cost / performance outdoor solution with IP67IR effective distance up to 40 meters with 56 IR LEDsSmart Light Control to avoid overexposureExcellent outdoor ID design with cable management
Model
AVK563
Pick up Element
1/3" HR color CCD
Number of Pixel
768(H) x 494(V) <NTSC> / 752(H) x 582(V)) <PAL>
Resolution
520 TV lines
Minimum illumination
0.15 Lux / F1.4, 0 Lux (IR ON)
IR LED
56 units
IR Effective Range
40 meters
S/N Ratio
More than 48dB (AGC off)
Electronic Shutter
1/60 (1/50) to 1/100,000 sec
Lens
f4.0mm ~ f9.0mm
Lens Angle
75° ～ 36°
IR Shift
YES
Smart Light Control
YES
Smart zoom
YES
White Balance
ATW
AGC
Auto
IRIS Mode
AES
IP Rating
IP67
Video Output
1.0 Vp-p composite, 75Ω
Operating Temperature
0℃~40℃
Power Source (±10%)
AC100V ~ 240V
Power Consumption (±10%)
Max 135W (with Heater)
Optional Peripheral
AVK-T1
* Specifications are subject to change without notice. ** Dimensional Tolerance: ± 5mm
